Spreader beam lifting or Modular spreader beam.

Lifting big loads by light customized modular systems

New Catalog V.2.

NEW MODELS AND NEW CAPABILITIES

DONWLOAD AT THE BOTTOM

General Catalog Ox Worldwide cover png
spreader beam DNV certificate

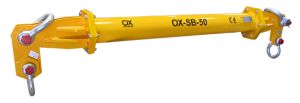

OX Worldwide offers you a complete modular range of spreader beam that allow you to assembly one or many spreader beams from 1 to 34 meters with a capacity of 2 to 1350 tons of load.

*– Available in stock up to 170 tons for sale and rental.

We currently have the models with the most total capacity and more length in the European market! (certificate by DNV)

We are accredited by the DNV Certificate  and the FEM-AEM. We also have ISO 9001:2015 and ISO 3834-2. This is our commitment to the highest quality standards And security, one of our core values.

spreader beam Ox Worldwide new

SPREADER BEAM OR MODULAR SPREADER BEAM MAIN ADVANTAGES:

– The Spreader beams is designed and manufactured in accordance with current norms.
– Reduced size and weight, that eases and reduces transportation, storage and installation costs.
Easy and fast assembly, following the steps on the instructions manual. An annual checking is mandatory.
Cheap product, replaces a whole range of spreader and beams.
– It is a modular system, you just have to add or remove them in order to have a new spreader beam adjusted to your needs for any lifting work.
Completely watertight terminals: This avoids any leakage of moisture that generates corrosion, ideal for the Maritime, Oil & Gas, Offshore sector.
– For a lifting of multiple anchorage points you can combine spreader beams vertically.
– All models are delivered with shackles.

As you can check from the examples on your right, we have a wide range of colors that define each and every capacity of our spreader beams.
If your lifting performance requires more specific data, contact us and we will provide you the data of the latest range of the Spreader Beam.

We have differentiated the Spreader beam with a sign board according to the load capacity and lengths.

If your lifting work requires more specific data, please contact us and our engineers will advise you.

Spreader Beam ox Worldwide parts

THE SPREADER BEAM ARE ALWAYS ADJUSTABLE LIFTING BEAM, ADDITIONAL INFORMATION

¿Do you need mobility and versatility in your movement of huge loads?
– The Spreader beam is designed and manufactured in accordance with current norms.
– Reduced size and weight, that eases and reduces transportation, storage and installation costs.
– Easy and fast assembly, following the steps on the instructions manual.
– Economic product, replaces a whole range of spreader and beams.
– It is a modular system, you just have to add or remove sections in order to have a new spreader beam adjusted to your needs for any lifting work.
– For a lifting of multiple anchorage points you can combine spreader beams vertically or form a rectangle with the corners.
– All series can be delivered with shackles.
– Series with huge loads use wide body shackles to avoid any damage on the slings.

MATERIAL
Structural steel and high elastic limit steel, supplied with quality certificate 3.1, are used for the manufacture of the spreader beams.
FINISH
The basic finishing of our products consists of Sa 2.5 sandblasting according to ISO 8501-1 standards. One layer of zinc phosphate epoxy primer with a thickness of 50 microns and two layers of polyurethane enamel colour RAL 1028. Other grades on request.

We comply with the provisions in the directives of the European Parlament and from the Council 2006/42/CE, on 17th May 2006, regarding the approach of several legislations of the member states on machinery and 2014/30/UE, on 26th
February 2014, regarding the approach of several legislations of the member states about electromagnetic compatibility, and it has been manufactured in accordance with the following norms:
-UNE-EN ISO 12100: 2012. Safety of machinery – General principles for design – Risk assessment and risk reduction
-UNE-EN 13155:2004+A2:2009. Cranes. Security, static equipment for lifting loads.
-UNE-EN ISO 3834-2:2006. Quality requirements for fusion welding of metallic materials – Part 2: Comprehensive quality requirement
We have obtained DNV-GL quality certification, for our Spreader Beams from 9 tons to 1350 tons of load, a requirement that proves that we work with the highest quality standards.
-Certificates DNV
– DNV GL standard DNVGL-ST-0378 Standard for offshore and platform lifting appliances
– DNV GL standard DNVGL-ST-0377 Standard for shipboard lifting.

Do you have to lift a very long load but not so heavy?
The cone adapters are the solution
The cone adapters are placed between the end unit of a certain load and the intermediate sections of upper models. In this way, it is possible use the spreader beam with more length without having to increase the model of the end unit, Drop Link and shackles.
Benefits:
-Reduction of end units and Drop Links in size and cost
-Reduction of upper and lower shackles in size and cost.

Lifting Beams

Lifting Beams are elements designed for the manipulation of loads. They are manufactured with beam, structural tube or electrowelded box beam where fixation elements to the superior crane part and bottom accessories to the load are designed.
These are lifting technical solutions designed under the requisites of each customer, strictly according to the design, manufacture, quality and security norms.

Lifting Beams are elements for the handling of loadsThey are placed between the crane and the tool to be manipulated to improve the stability and safety of the movement of the load.
There are as many lifting beam models as our customers have requirements. They are custom designed to solve the lifting of loads of each client, strictly complying with design and manufacturing regulations. They can be fixed, adjustable, in the form of “H”, rectangular, rotating, telescopic … Or a mixture of all. At OX Worldwide we have designed and manufactured lifting beams to handle loads from 100 kg to 180 tonnes.
They are usually manufactured with a beam, structural tube or electrowelded box to which the necessary upper and lower suspension elements are added. The upper elements are those that are attached to the crane (or cranes) and the lower elements are those that are attached to the load.

Spreader beam lifting can have many applications and is used in all industrial sectors, normaly the hook lifting the spreader beams below the hook with slings.

We can manufacture with hook lifting device or not, but always spreader beams are adjustable lifting beam to several of your needs, lifting and rigging of any type.

Spreader beams and caldwell adjustable lifting never must to lift off center loads. Beams spreader beams are our flagship product, and spreader beams also plate lifting beams.

Lifting beam and spreader beam ligting they are devices in all industrial sectors. Beams and lifting are most our product selling and lifting beams are designed by our engineers and certificates and lifting beams.

SPREADER BEAMS APPLICATIONS

spreader beam Ox Worldwide applications
spreader beam Ox Worldwide applications 2

SPREADER FRAME OR CORNER BEAM

spreader frame or corner beam for large loads

Corners are used to join several spreaders into a frame. They are modular, easy to assemble and dissamble and can be adapted o various configurations and sizes, and they are used to lift multiple kind of loads.

balancin de carga Ox Worldwide spreader fream
corner-Corner Beams Ox Worldwide 1

Do you have to lift bulky or very large loads? The Spreader Frames are the solution

The cone adapters are placed between the end unit of a certain load and the intermediate sections of upper models. In this way, it is possible use the spreader beam with more length without having to increase the model of the end unit, Drop Link and shackles.

Benefits:

-With 4 straight downspouts you raise the load by 4 points.
-Reduction of end units and Drop Links in size and cost
-Reduction of upper and lower shackles in size and cost.

Spreader beam - corner beam - Ox Worldwide

CONSULT THE LOAD TABLES OF THE SPREADER FRAMES IN OUR CATALOG SECTION OF — SPREADER BEAMS—

Spreader frame Ox Worldwide
Spreader frame Ox Worldwide 1

READY TO SHIP

Spreader Frames box

DOWNLOAD SPREADER BEAMS CATALOG V.2.

With all the tables of lengths / capacities of all the models
